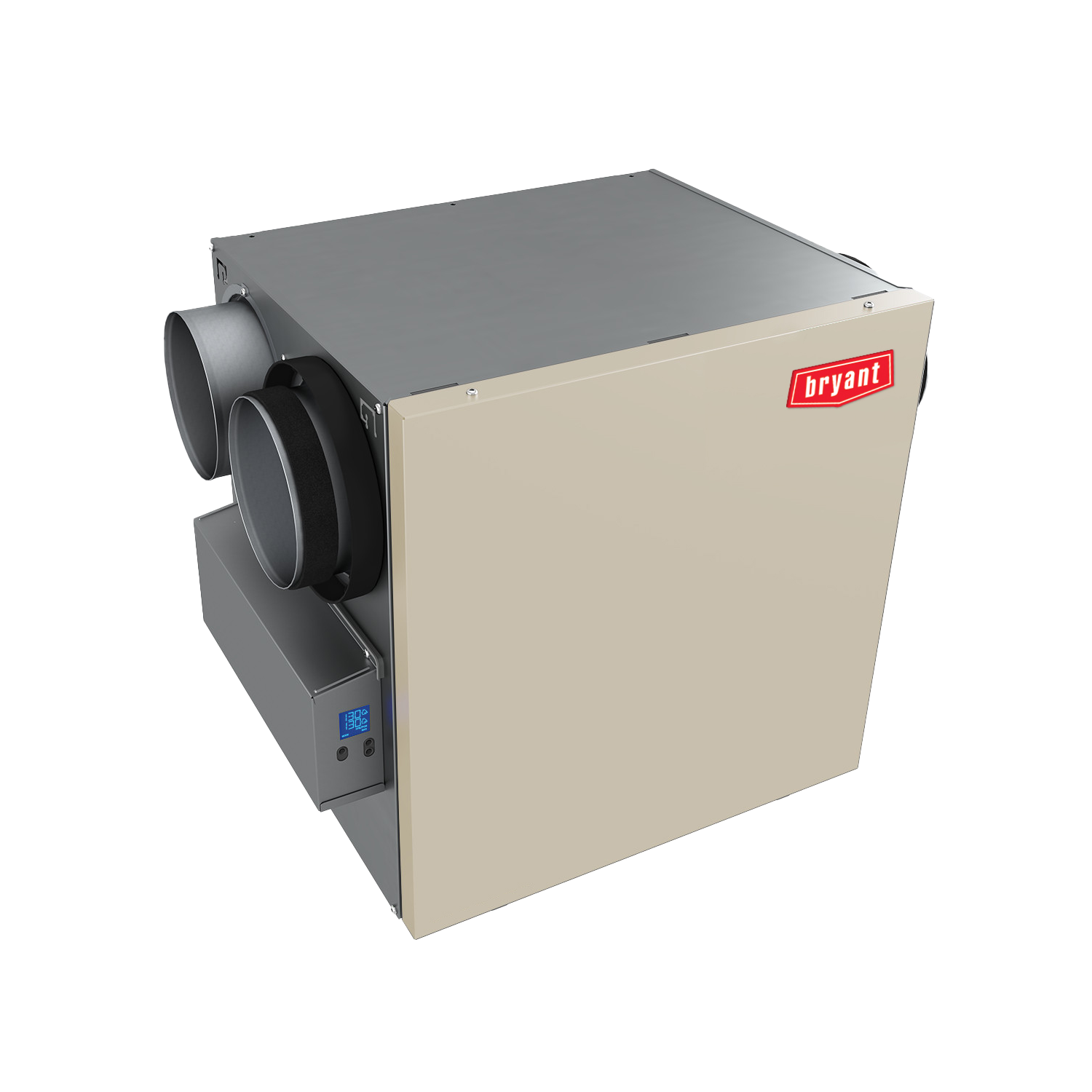

Preferred™ Horizontal Energy Recovery Ventilator (ERVXXSHA)
Air Flow
Up to 150 cubic feet per minute
Sensible Recovery Energy
Up to 65% SRE
Bring Fresh Air Into Your Home Without Opening the Windows
If you live in a hot, humid summer climate you may want to consider an ERV for its ability to bring fresh air in while keeping unwanted airborne moisture out, Designed for use all year long with a horizontal system, this unit’s special, enthalpic transfer media core will help infuse indoor heating or cooling energy into the incoming fresh air. Even on extreme winter days, it’s an energy-efficient alternative for refreshing comfort inside without opening your doors or windows.
Features
- Brings in fresh air and expels stale, sometimes unhealthy air
- Pre-conditions incoming air to minimize energy loss
- Reduces humidity in summer from incoming fresh air
- Prefilters particulates from incoming air and outgoing air to protect core
- Crossflow design keeps stale, outgoing air from mixing with fresh, incoming air
- Capable of intermittent- or continuous operation depending on control used
- Automatically defrosts when outdoor temperatures are below 23°F
- Designed for quiet operation
- 10-year parts limited warranty upon timely registration1
1 To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
Specifications
Efficiency
- Sensible Recovery Energy: Up to 65% SRE
Performance
- Maximum Airflow: Up to 150 cubic feet per minute
- Sound: Quiet operation
Conveniences
- Filter Change: Easy access hinged door for filter cleaning and core cleaning
Technology
- Core: Moisture absorbing, crossflow, enthalpic core
- Core Protection: Incoming and outgoing air is prefiltered
- Compatible Controls: Evolution® or separate ventilator control
Installation
- Placement: Wall or ceiling mounted
- Venting: Horizontal
- Electrical: 115V
Aesthetics
- Cabinet: Taupe color on metal matches Bryant furnace and fan coils
- Dimensions: 19.125"H x 23.5"W x 16.125"D
